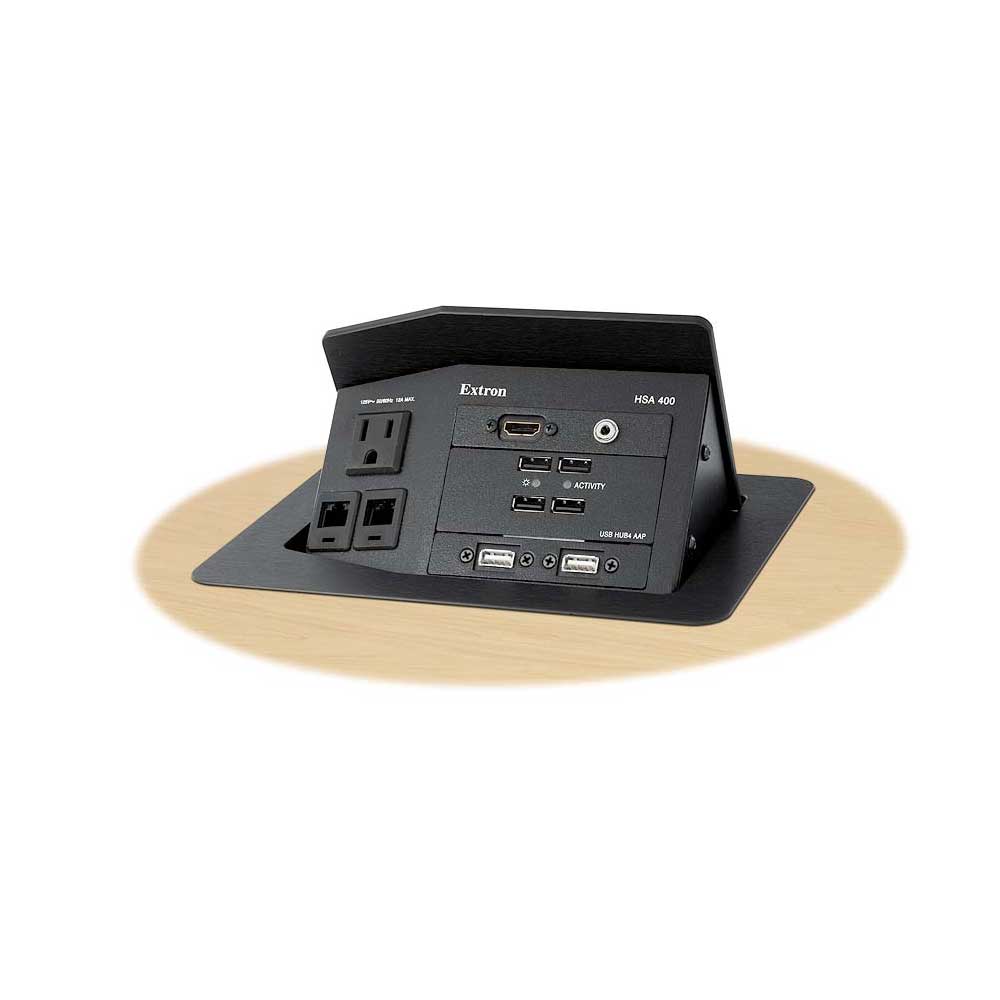

The Extron Hideaway® HSA 400 is a tilt-up, architectural solution for inconspicuous computer-video interface connector access and control. The Hideaway HSA 400 enclosure is designed for easy mounting into tables, desks, or other AV furniture. The durable and reliable enclosure is very compact, which keeps installation time and effort at a minimum. Once installed, the HSA 400 fits nearly flush with the tabletop, storing the connectors out of sight. To access the connectors, users press down on the top of the enclosure. Pressing down releases a mechanical latch and the Hideaway HSA 400 slowly pivots into view, presenting the connectors at an ergonomic 49-degree angle to the tabletop.



The HSA 400 offers one AC outlet, and two CAT 6 RJ-45 network/data/phone connectors on its faceplate. In addition, the faceplate also includes room for up to four single-space Extron AAP - Architectural Adapter Plates. AAPs are available with hundreds of connector combinations to meet the needs of any application.



Additionally, the Hideaway HSA 400 can be optimized with the unique Extron RGB 580xi remote interface. The RGB 580xi is a universal, computer-video interface with audio and ADSP™ Advanced Digital Sync Processing.





Included Accessories

Single Blank Plate Double Blank Plate RJ Connector Bezel Kit

2 1 1

Features

Durable pneumatic movement and mechanical latching mechanism

Compact size with rectangular bezel

Top surface available in a black anodized finish

Opening for four single-space AAP - Architectural Adapter Plates

Two CAT 6 RJ-45 network/data/phone connectors

One unswitched AC outlet

AC power outlets available for US, Europe, and other major world markets

Available Universal AC outlet is compatible with a variety of AC plug types*

US enclosure is UL/c-UL listed

Installation routing template available
